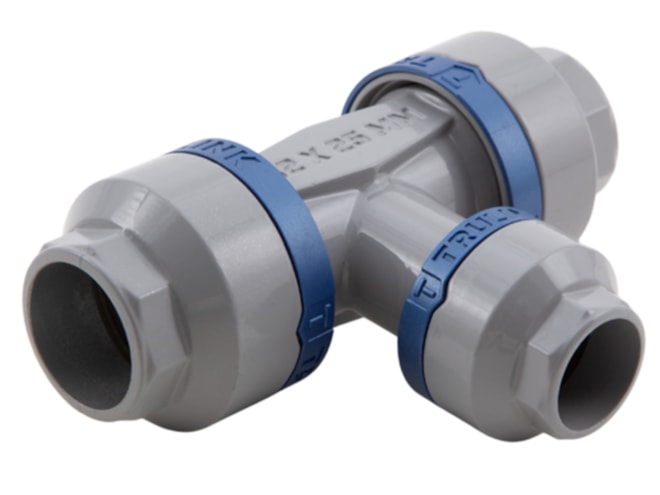

Applied System Technologies TruLink PTC Outlet Reducing Tee

Outlet reduction tee fitting with water trap, 20 to 63mm pipe sizes.

Select your options below…

Need help building your system?
Call one of our experts at 508-217-6317

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 508-217-6317. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $35.49
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Sizes:
    • 20mm x 20mm
    • 25mm x 20mm
    • 32mm x 20mm
    • 32mm x 25mm
    • 40mm x 20mm
    • 40mm x 25mm
    • 50mm x 20mm
    • 50mm x 25mm
    • 50mm x 32mm
    • 63mm x 20mm
    • 63mm x 25mm
    • 63mm x 32mm
  • Pressure rating:
    • 230 PSI max
    • -29.6Hg min
  • Marine-grade aluminum construction
  • HBNR Double o-ring seal
  • External size identification
  • Lifetime warranty

The Applied System Technologies TruLink PTC Outlet Reducing Tee is manufactured from marine-grade aluminum for lightweight and corrosion resistance. The fitting comes ready to install, requires no special tools to install or modify, and is compatible with compressed air lubricants. The double o-ring seal prevents leaks or separation of the connection. All fittings and piping are backed by a lifetime warranty.

This product can be used in the following applications:

Manufacturer Stock

Part Number Price Available
TP10-50-25
Show Configuration
$121.56 285 in stock
TP10-40-25
Show Configuration
$67.96 123 in stock
TP10-25-20
Show Configuration
$36.91 117 in stock
TP10-50-20
Show Configuration
$120.02 116 in stock
TP10-40-20
Show Configuration
$66.18 106 in stock
TP10-20-20
Show Configuration
$35.49 68 in stock
TP10-32-20
Show Configuration
$49.70 56 in stock
TP10-63-20
Show Configuration
$150.92 40 in stock
TP10-63-25
Show Configuration
$153.05 37 in stock
TP10-50-32
Show Configuration
$124.69 22 in stock
TP10-63-32
Show Configuration
$154.85 19 in stock
TP10-32-25
Show Configuration
$51.29 18 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 5 weeks". Click here to select options
