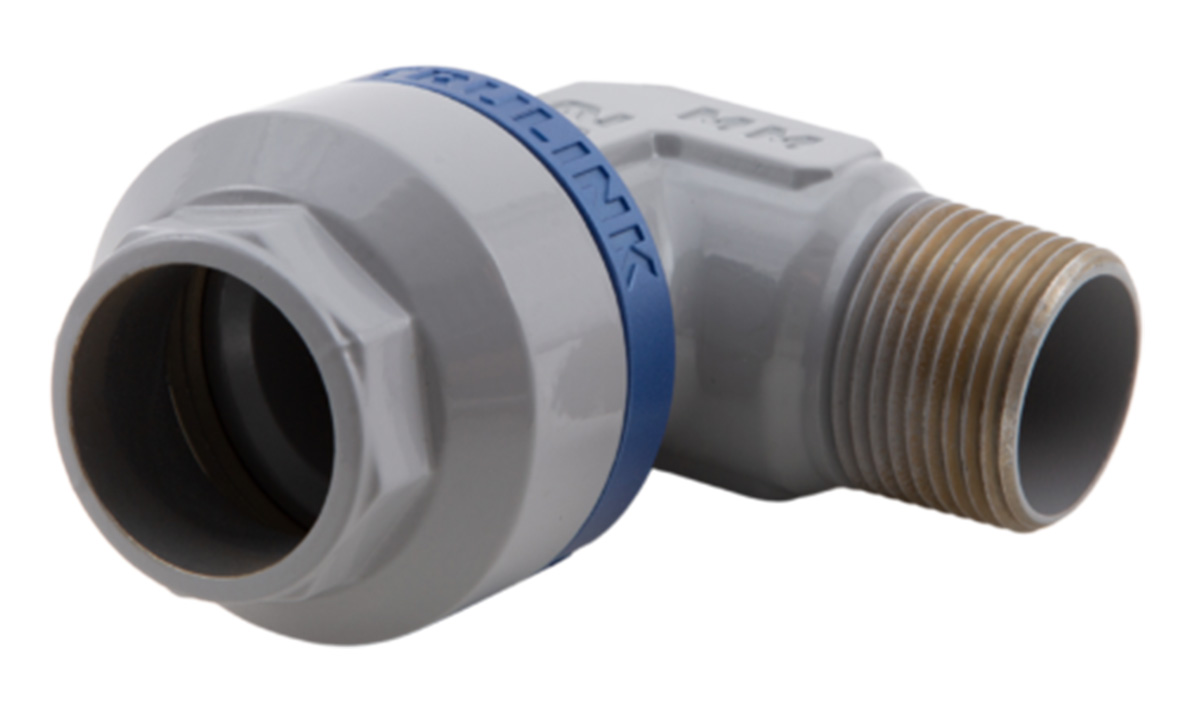

Applied System Technologies TruLink PTC 90 Degree Union Elbow Connector

For use with TruLink PCT pipes, 20 to 63mm pipe sizes, union or street (MNPT threaded) options available.

Select your options below…

Need help building your system?
Call one of our experts at 508-217-6317

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 508-217-6317. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $22.51
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Union Elbow Sizes:
    • 20 to 63mm
  • Pressure rating:
    • 230 PSI max
    • -29.6Hg min
  • Street Elbow (PTC to MNPT thread) Sizes:
    • 20mm X 1/2″ MNPT
    • 20mm x 3/4″ MNPT
    • 25mm x 3/4″ MNPT
    • 25mm x 1″ MNPT
    • 32mm x 1″ MNPT
    • 40mm x 1-1/2″ MNPT
    • 50mm x 1-1/2″ MNPT
    • 50mm x 2″ MNPT
    • 63mm x 2″ MNPT
    • 63mm x 2-1/2″ MNPT
  • Marine-grade aluminum construction
  • HBNR Double o-ring seal
  • External size identification
  • Lifetime warranty

The Applied System Technologies TruLink PTC 90 Degree Union Elbow Connector is manufactured from marine-grade aluminum for lightweight and corrosion resistance. The fitting comes ready to install, requires no special tools to install or modify, and is compatible with compressed air lubricants. The double o-ring seal prevents leaks or separation of the connection. All fittings and piping are backed by a lifetime warranty.

Applied System Technologies Thread Sealant
Applied System Technologies Thread Sealant

1oz tube, food grade thread sealant.

Mfg. has stock
$16.64 $13.31

This product can be used in the following applications:

Manufacturer Stock

Part Number Price Available
TP6-20
Show Configuration
$22.51 1788 in stock
TP6-25
Show Configuration
$31.52 1323 in stock
TP6-50
Show Configuration
$99.06 727 in stock
TP6-40
Show Configuration
$64.84 534 in stock
TP6-32
Show Configuration
$47.25 442 in stock
TP6-63
Show Configuration
$111.53 213 in stock
TP6-50-32M
Show Configuration
$183.11 185 in stock
TP6-32-16M
Show Configuration
$85.61 162 in stock
TP6-63-40M
Show Configuration
$210.68 88 in stock
TP6-63-32M
Show Configuration
$201.85 84 in stock
TP6-20-12M
Show Configuration
$44.46 58 in stock
TP6-20-08M
Show Configuration
$43.20 45 in stock
TP6-40-24M
Show Configuration
$117.50 42 in stock
TP6-25-12M
Show Configuration
$57.33 37 in stock
TP6-25-16M
Show Configuration
$60.66 35 in stock
TP6-50-24M
Show Configuration
$179.54 19 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 5 weeks". Click here to select options
